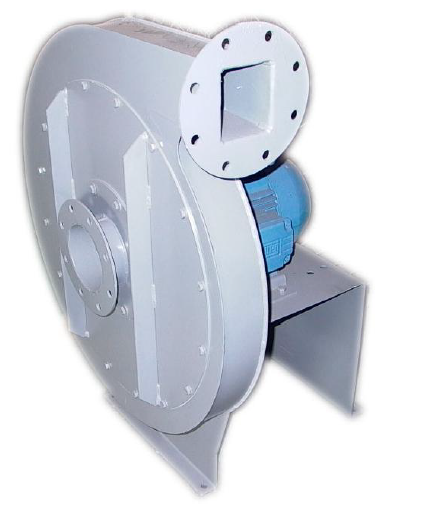

HPLV Blower
- Single Inlet Centrifugal Blower / Exhauster
- Carbon Steel casing and motor pedestal
- Carbon Steel, radial tipped Impellers
- Motors Class F, IP55 TEFC
- Motors are suitable for 230/400V – 400/690V 3Ph 50Hz
- Operating Temperature 0°C to 50°C
- Finish; 2 coat paint system, oxide zinc chromate primer, coated with alkyd enamel top coat.
- On special request:
- Special windings for different voltages
- Premium Efficiency Plus motors
- Special Motor Classifications
- Stainless steel
- Special Coatings
Sizes
500, 560, 630, 710mm Diameters.
Applications
This range of fans is ideally suited for moving low volumes of air against High pressures in the following typical applications:
- Air knife systems
- Auto part drying systems
- Water/Fish Tanks systems
- Water treatment and sewage treatment systems
- Bottle drying systems
- Electroplating part drying systems
- Plastic drying and cleaning systems
- Plastic sheet drying systems
- Vacuum filling systems
- Vacuum package systems
- Material handling systems
- Ultrasonic washing systems
- Food processing and drying systems
- Pneumatic conveying system
Impellers
Carbon Steel, radial tipped Impellers
Balancing
Impellers are dynamically balanced to ISO 1940 grade G6,3
Casings
Carbon Steel casing and motor pedestal
